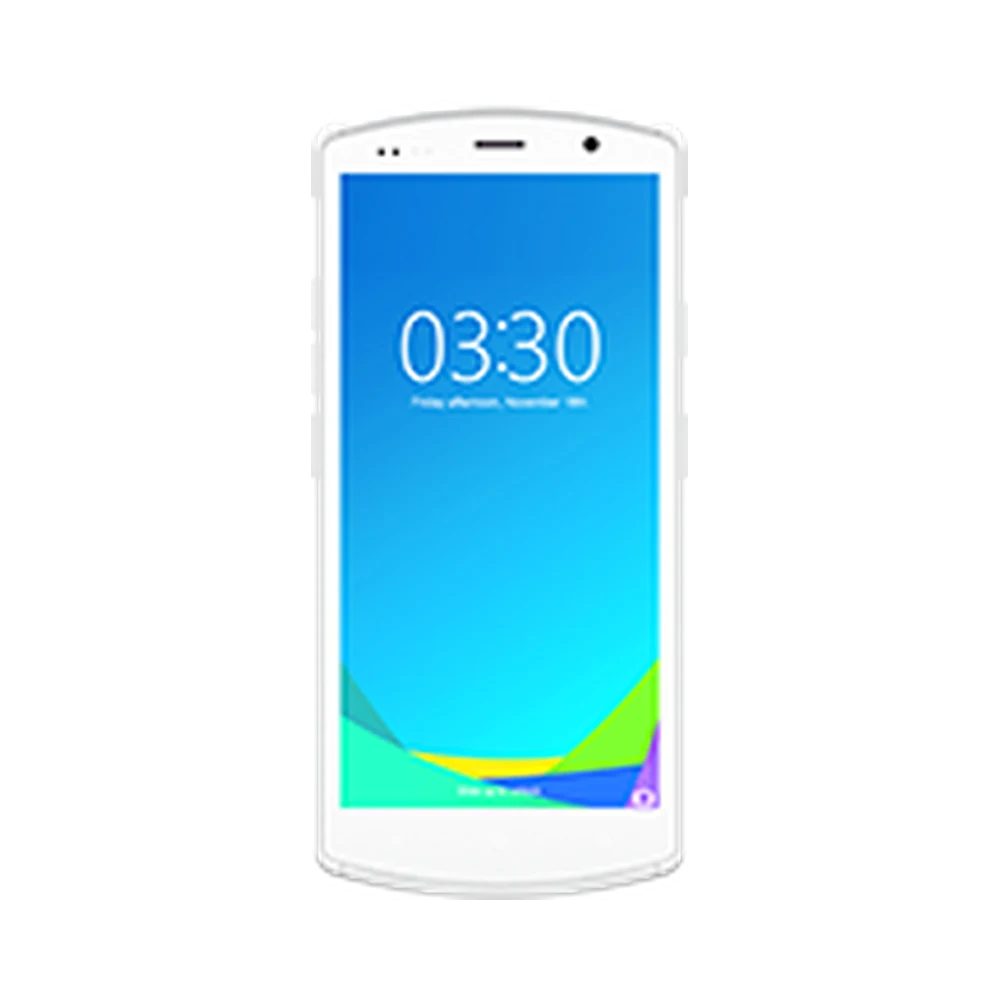

KT-KP18M
Super Performance with MediaTek Dimensity 900 6nm Dual-band WiFi 4G/5G, High-Speed Transmission, Supports WiFi6, Meeting All Hospital Needs.
- Android 12
- Dual SIM card slots
- 2G/3G/4G/5G
- 2.4G/5G WiFi6 802.11ax
- Bluetooth 5.1 +BLE
- 4GB+64GB /6GB+128GB/8GB+256GB(Optional)

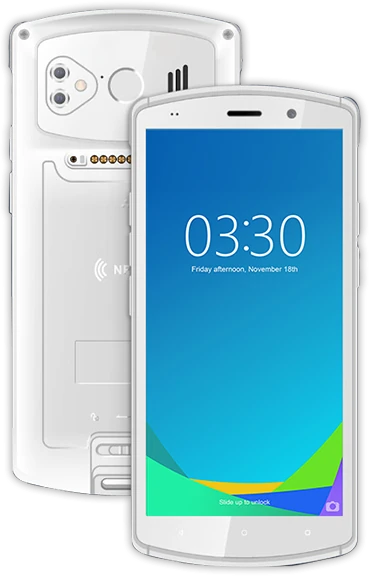

The Best Partner of Medical Staff
Efficient/Durable
Super Performance with MediaTek Dimensity 900 6nm Dual-band WiFi 4G/5G, High-Speed Transmission, Supports WiFi6, Meeting All Hospital Needs.
Basic Functions, Better Performance
Android 12
Dual SIM card slots
2G/3G/4G/5G
2.4G/5G WiFi6 802.11ax
Bluetooth 5.1 +BLE
4GB+64GB /6GB+128GB/8GB+256GB(Optional)
MediaTek Dimensity 900
LCD 5.7-inch IPS
QR / bar code scanner(optional)
Corning GG3 reinforced glass cover
NFC/Magnetic(optional)
Biometric Readers
Robust Structure / Sophisticated Performance with Multiple Outputs
Equipped with a high-performance octa-core 2.4GHz processor, it swiftly enables a new model of interaction between doctors and between doctors and patients. This includes patient information identification and collection, bidirectional referrals, remote collaboration, and more, helping doctors improve clinical work efficiency.
Medical-Grade Protective Casing: Corrosion-Resistant and Easy to Clean
Whether it’s medical solutions, alcohol, or hydrogen peroxide, the casing resists corrosion and wear, significantly extending the device’s lifespan.
5G Core: Full Signal Strength
With 5G WiFi support, it offers fast roaming capabilities, meeting the rapid needs of hospital APs. It’s easy to operate, making mobile healthcare networks smoother, more convenient, and faster!
Professional High-Speed Scanner
Designed for medical scenarios where barcodes are often curved, wrinkled, or appear on wristbands and infusion bags, this scanner responds in milliseconds without needing to flatten the barcode.
Practical and Thoughtful Features: Single-Touch Convenience
Designed specifically for healthcare professionals, the KP18 offers features like one-touch intercom, one-touch WiFi connection, and fingerprint login, significantly enhancing the efficiency of medical staff.
IP67 Protection
The device is IP67 rated, withstanding drops from 1.2 meters onto concrete. Dual-color injection molding minimizes the risk of screen and internal component damage from falls.
2-Hour Quick Full Recharge
Extended battery life with detachable battery handle, supporting battery replacement with the handle:
hardware and software security protections; low-power system designed.
24 Hours
Battery life with charging&using
7-10 Hours
Last up to 7-10 hours after the battery is fully charged
2 Hours
Flash charging can be fully charged within 2 hours

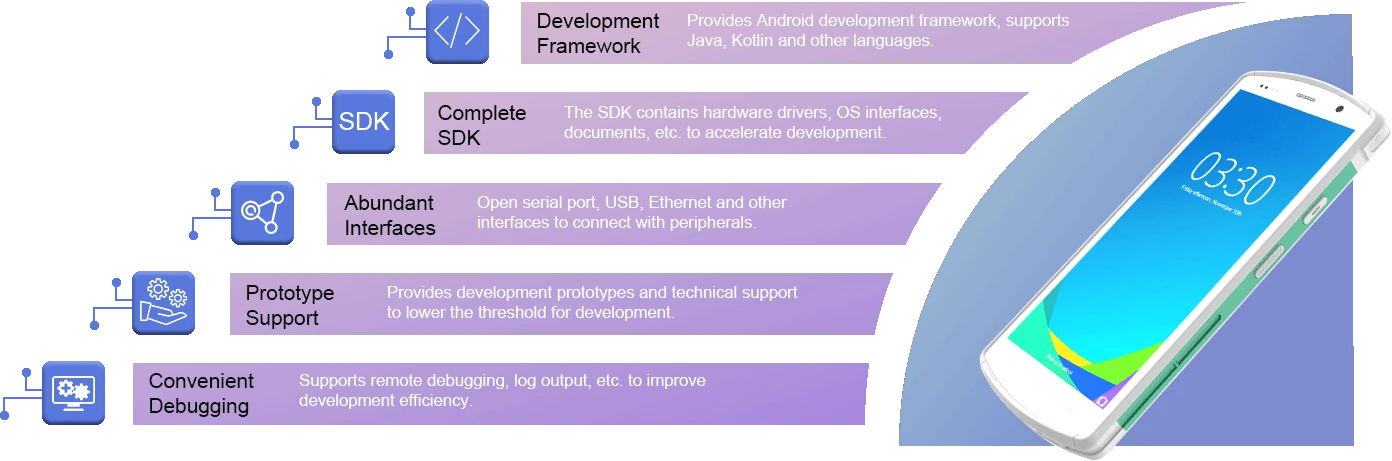

Powerful Secondary Development Support
KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.
Optional Accessories
Hand strap

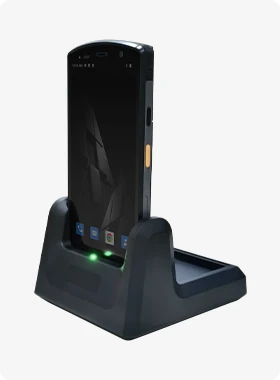

Cradle
Spare Battery
Shell
PRODUCT TECHNICAL SPECIFICATIONS
Memory: 4GB RAM+64GB ROM
Expansion: Supports up to 256GB Micro SD card
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio
Rear Camera: 13MP AF with flash
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR（N1/3/8/28/38/41/77/78/79）
Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 4000mAh battery
Applicable Scene
KT-KP18
4G LTE / 5G
2.2 Gigabit Carrier Speed
5.7-inch
HD+，720*1440
5mp
5mp front, 13mp rear
4000mAh
Removable 4000mAh battery
Android™12.0
Android™12.0 System
KT-KP18(Medical)
5G
2.2 Gigabit Carrier Speed
5.7-inch
HD+，720*1440
5mp
5mp front, 13mp rear
4000mAh
Removable 4000mAh battery
Android™12.0
Android™12.0 System
KT-KP26
4G LTE / 5G
2.2 Gigabit Carrier Speed
6-inch
HD+，720*1520
5mp
5mp front, 13mp AF + 5MP FF rear
5000mAh
Removable 5000mAh battery
Android™11.0
Android™11.0 System
KT-KP36
4G LTE
1Gigabit Carrier Speed
4-inch
HD+，800*480
5mp
5mp front, 13mp rear
5000mAh
Removable 5000mAh battery
Android™11.0
Android™11.0 System
Interested in the KT-KP18M?
5.7-inch Medical Handheld Rugged PDA. Tell us about your project, volumes and customization needs. Our sales engineers reply within 24 hours with pricing, lead times and samples.
- OEM / ODM customization and low MOQ
- Sample testing before bulk orders
- 15+ years of 4G/5G device manufacturing
