KT-R2A
MTK T750 Chip · High Speed Wi-Fi6 · 2.5G Port, Fast Internet Access
- Rocket speed: 4.67 Gbps theoretical download rate
- NSA/SA 5G dual-mode network, 4G compatible
- Sub-6G: supports mainstream operator bands
- High speed Wi-Fi 6
- 2.5G port for fast internet access

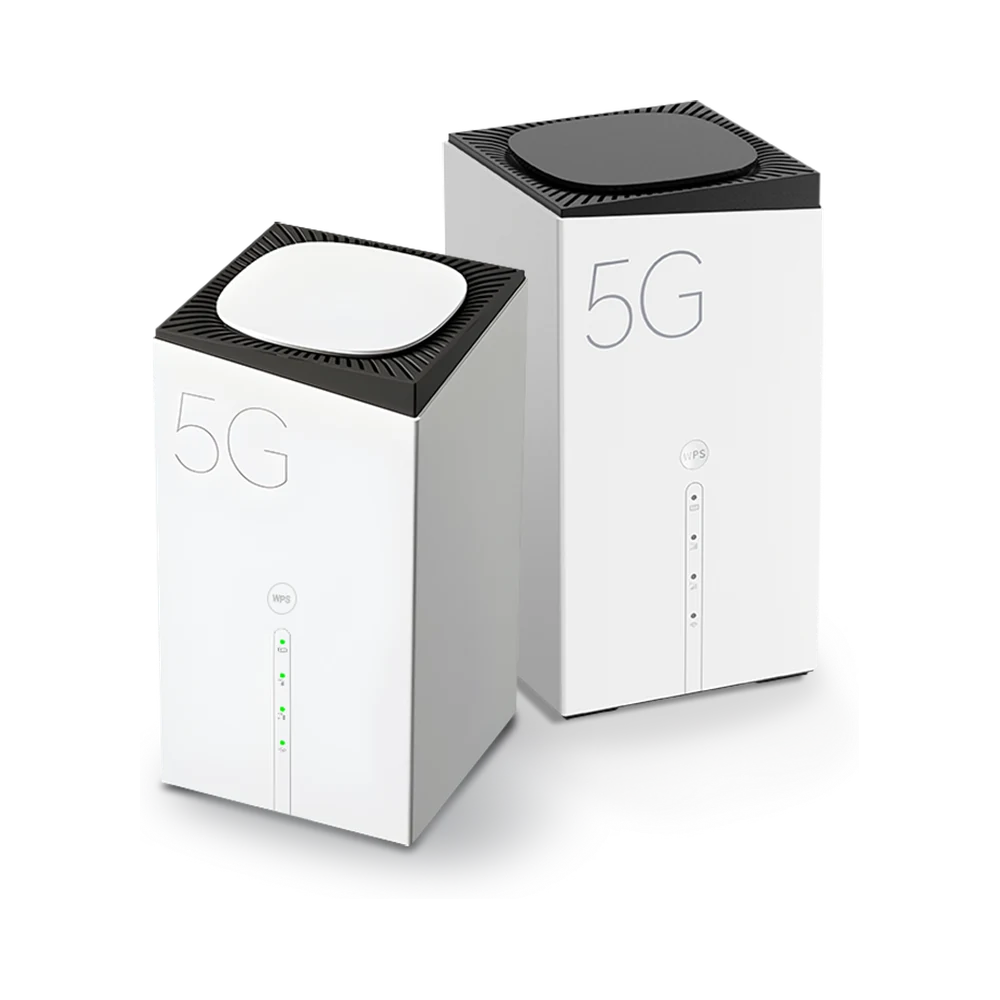

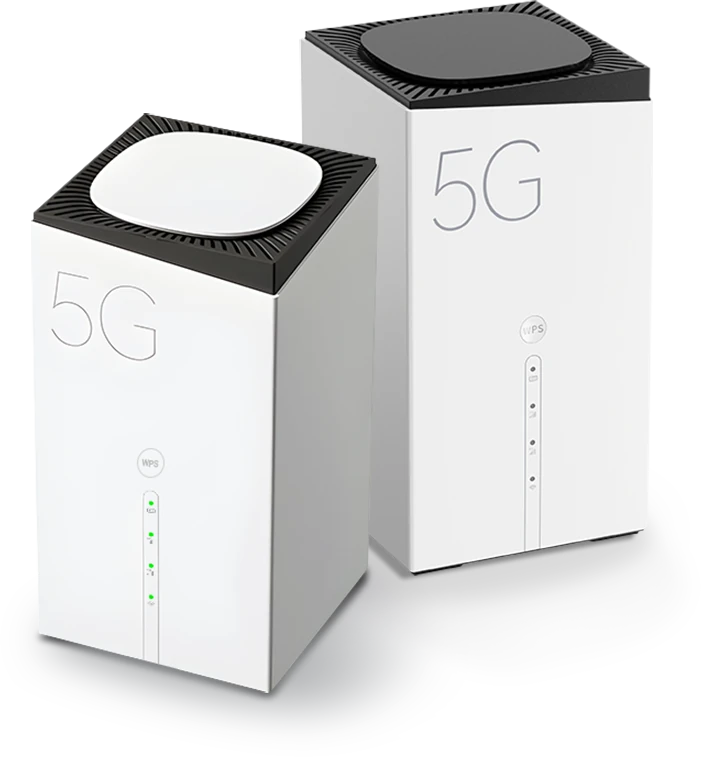

5G Consumer-grade Router
KT-R2A
Get a full signal in every room
MTK T750 Chip | High Speed Wi-Fi6 | 2.5G Port, Fast Internet Access
What makes Kingtop CPE different?
Surging power from the core
Equipped with MTK T750, a quad-core ARM Cortex A55 architecture chip, using 7nm process technology, supporting multi-operator aggregation technology, the theoretical peak increase to 4.67Gbps.
Rocket Speed
4.67 Gbps theoretical download rate
NSA/SA
5G dual-mode network, 4G compatible
Sub-6G
Supports mainstream operator bands
ISP
Supports mainstream operator certification
Blazing-fast speeds rate up to 3.6Gbps
MTK WiFi chips, support AX3600 and AX1800, also support 128 users at the same time. The speed can reach up to 3.6Gbps.
Beamforming technology for all-weather stability
4pcs 2.4/5GHz 5dBi high gain antennas, forming a 4-antenna array, 8pcs cellular antennas, superimposed MU-MIMO, beam forming, higher rates, stronger through-wall performance.
Enjoy a worry-free network
In a barrier-free environment, the wireless signal coverage range of the CPE device is as follows:
5G band: the coverage distance is about 30 meters.
2.4 band： the coverage distance is about 100 meters.
Rich scenarios to enjoy network
Product Technical Specifications
Memory: 1GB RAM + 1GB ROM
WIFI : MT7915+MT7975
AX1800:5 GHz: 1201 Mbps , 2.4 GHz: 574 Mbps
Protocal : 802.11 a/b/g/n/ac/ax,wifi6
Throughput:
NSA：n1/ 3/ 5*/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71*/ 77/ 78
SA：n1/ 3/ 5*/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71*/ 77/ 78
FDD: B1/ 3/ 5*/ 7/ 8/ 20/ 28/ 32/ 71*
TDD: B38/ 40/ 41/ 42/ 43
WCDMA：B1/ 5*/ 8
SA: DL : 4.67Gbps, UL: 1.25Gbps;
NSA: DL : 3.74Gbps(LTE 1.4Gbps+NR 2.3Gbps)
UL:835Mbps(LTE 211Mbps+NR 625Mbps)
4G:
DL: 1.6Gbps, UL: 211Mbps

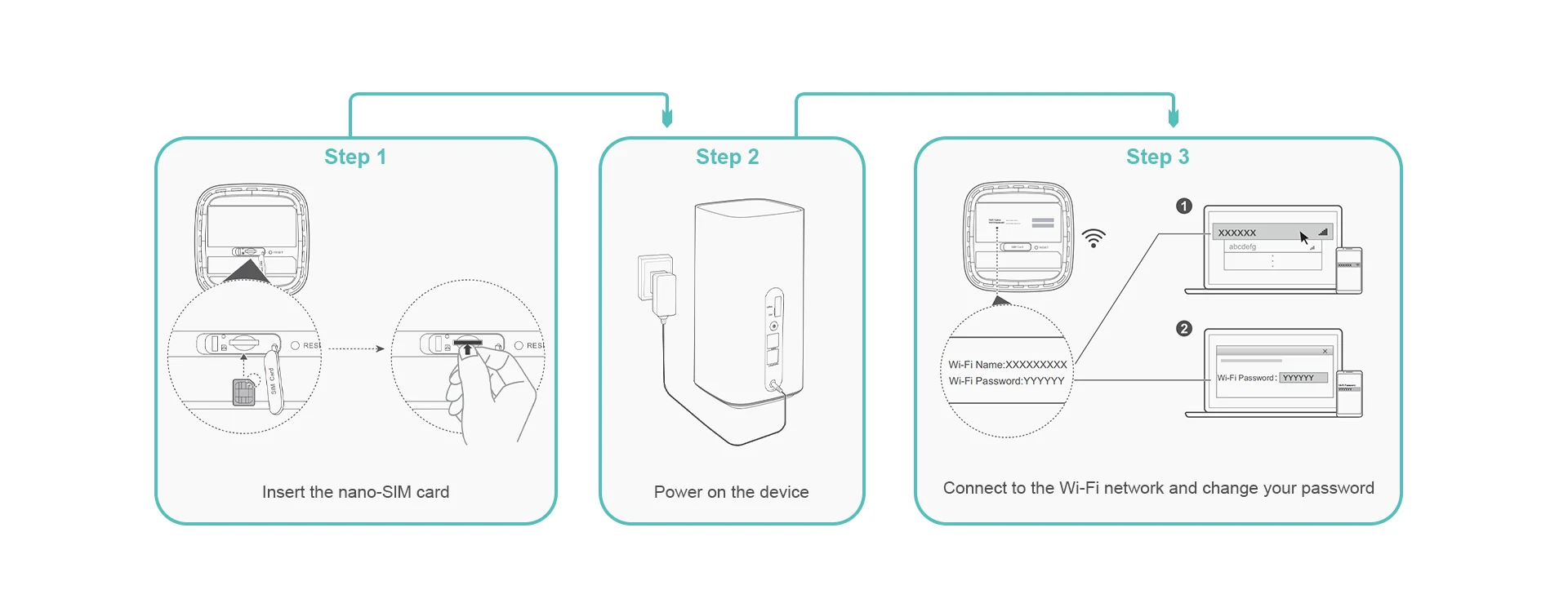

How to connect your CPE?
Compatibility worry-free. Simply insert the nano-SIM card into your current CPE and you can enjoy WiFi for your entire home with a few simple steps.
KT-R2A
CPU
MediaTekT750
5G
SA: DL : 4.67Gbps, UL: 1.25Gbps
WIFI6
802.11ax,
Up to 4.67Gbps
KT-R4A
CPU
MTK900
5G
NSA NR：Downlink/Uplink up to 3.5Gbps/700Mbps
WIFI6
802.11ax,
Up to 3.5Gbps
KT-R6A
CPU
MTK 6769
4G
LTE：Downlink/Uplink up to 300Mbps/50Mbps
WIFI5
802.11ac
2.4GHz & 5GHz Dual-Band
Interested in the KT-R2A?
5G Consumer-grade Router. Tell us about your project, volumes and customization needs. Our sales engineers reply within 24 hours with pricing, lead times and samples.
- OEM / ODM customization and low MOQ
- Sample testing before bulk orders
- 15+ years of 4G/5G device manufacturing
