KT-KP18
5.7”ultra-high definition screen shows display area, sunlight readable display, enhancing readability in the toughest work environments.
- Android 12
- Dual SIM card slots
- 2G/3G/4G/5G
- 2.4G/5G WiFi6 802.11ax
- Bluetooth 5.1
- 4GB+64GB
Basic Functions, Better Performance
Android 12
Dual SIM card slots
2G/3G/4G/5G
2.4G/5G WiFi6 802.11ax
Bluetooth 5.1
4GB+64GB
MediaTek Dimensity Octa core
LCD 5.7-inch IPS
QR / bar code scanner(optional)
Corning GG3 reinforced glass cover
NFC/Magnetic(optional)
Biometric Readers

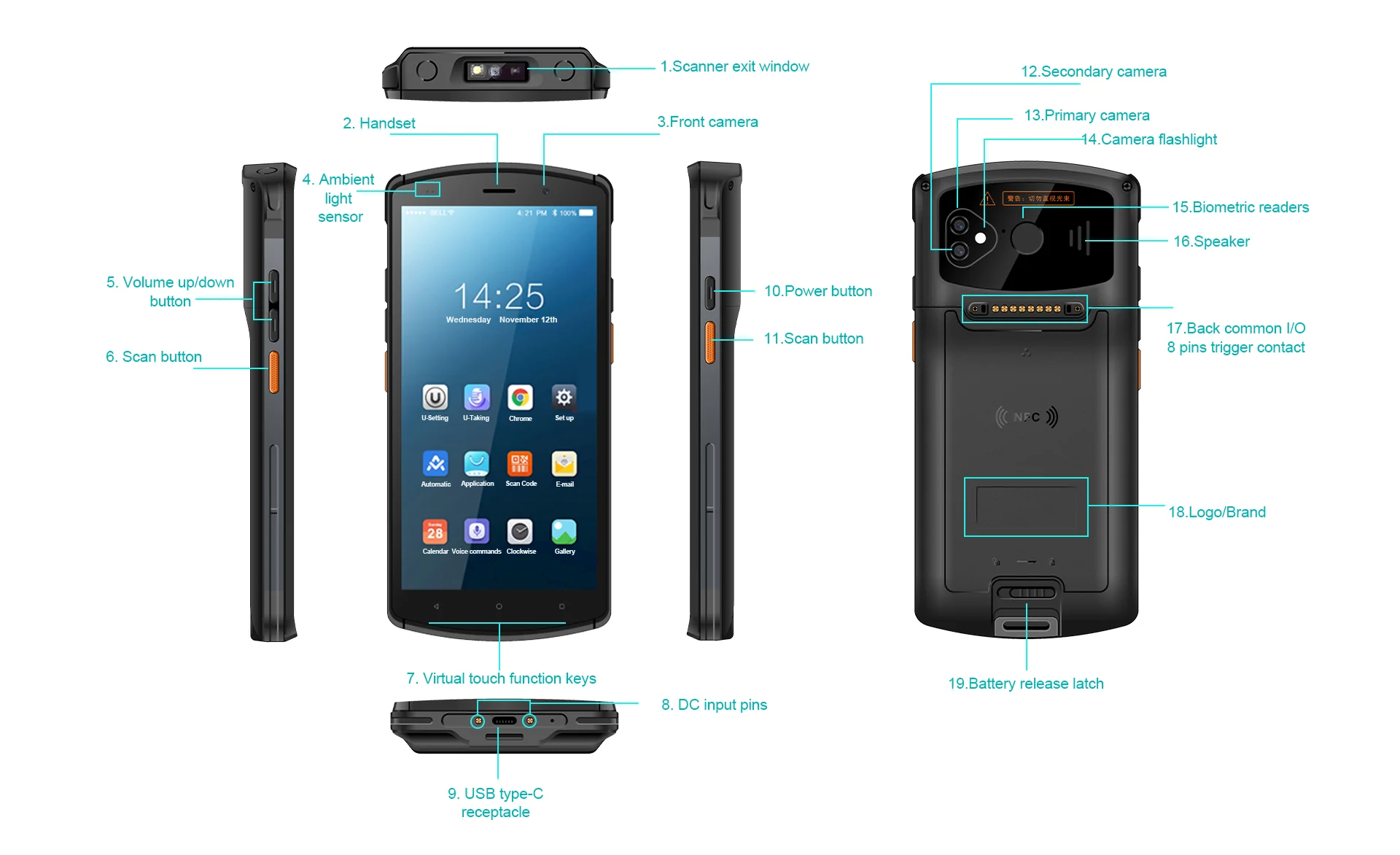

Android 5.7-inch Handheld Computer—KT-KP18
– 5.7”ultra-high definition screen shows display area, sunlight readable display, enhancing readability in the toughest work environments.
– Embedded market-leading scan engine Newland CM60, including dedicated GPS + 4G LTE cellular data, WiFi+BT, 1D/2D Barcode Reader and NFC/RFID.
– Replaceable 4000mAh large capacity battery, mobile management device supported QC charging and long battery life.
– Rugged mobile device can be operated in temperatures from -21°C to 60°C.
– IP65 sealing and 1.5 meters drop resistance, it was engineered to survive drops, shocks, rain, vibration, dust, liquid and more.
Wireless Transmission, Higher Efficiency
The KT-KP18 enables efficient and convenient wireless data transmission, meeting the needs of flexible remote working.
High-speed 5G Network
Supports high-speed data transmission over 5G networks, with fast upload and download speeds, greatly improving work efficiency.
Stable WiFi Connection
Equipped with WiFi 6 module for more stable and reliable wireless network connections.
Bluetooth 5.1 Transmission
The KT-KP18 is equipped with Bluetooth 5.1, enabling wireless connections with terminals and printing devices. Bluetooth 5.1 is more power efficient, delivers faster transmission speeds, and enables more stable and reliable connections.
NFC Identification
Built-in NFC module enables employee attendance punch in, fast item identification, and more.
Efficient and Convenient Data Transmission Modules
High-speed Scanning Module
– Supports the integration of 2D Newland CM60 scanning modules, with scanning distances up to 20 cm
– Scanning performance is stable, with high accuracy in reading barcodes and QR codes
NFC Module
– Built-in 13.56MHz NFC module
– Supports fast identification and transmission over short distances
– Facilitates employee attendance punch in
Biometric Unlock
Android mobile touch computer supports multiple fingerprint identification applications, more easily accessed. Fully meeting the requirements of various mobile applications of enterprises.
High Definition Screen Shows Display
1440 * 720 ultra-high resolution strong and weak light environment make work clear at a glance.
1440×720
HD+ Resolution
GG3
Corning Gorilla Glass
5.7” IPS
Capacitive multi-touch
Power That Lasts All Day
Replaceable 4000mAh large capacity battery, full power can be restored quickly in 2 hours.
24 Hours
Battery life with charging&using
7-10 Hours
Last up to 7-10 hours after the battery is fully charged
2 Hours
Flash charging can be fully charged within 2 hours
Industrial Quality
IP65 sealing and 1.5 m shock resistance are built within the rugged Android RFID mobile computer for every purpose.
IP65 Waterproof
1.5m Drop Resistance
IP65 Dustproof

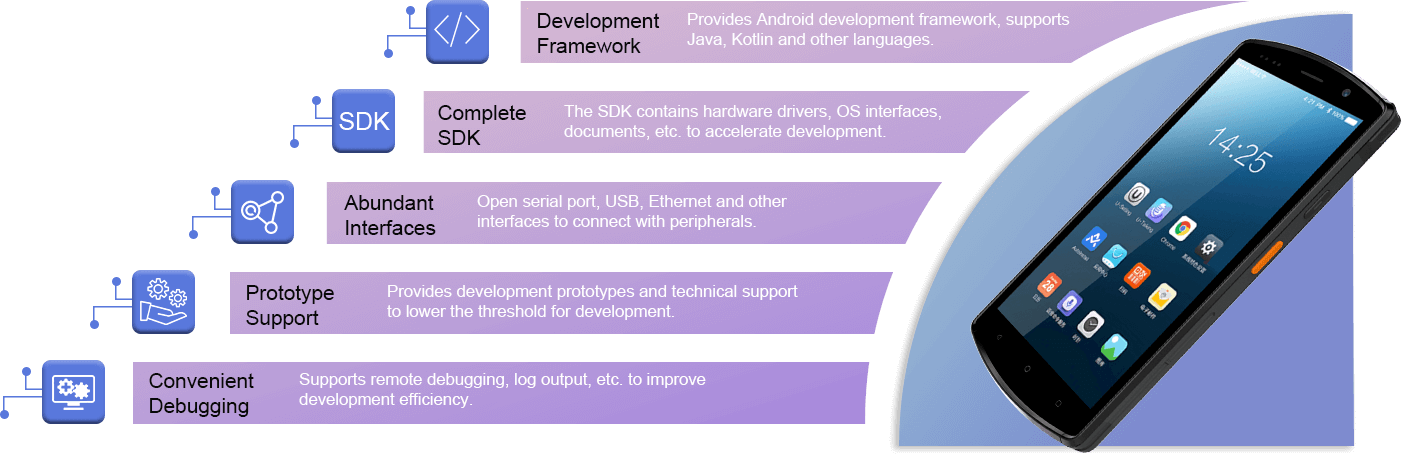

Powerful Secondary Development Support
KINGTOP PDA products and SDK support are the best choice for your mobile office and intelligent management needs.
Optional Accessories
Hand strap
Cradle
Spare Battery
Shell
PRODUCT TECHNICAL SPECIFICATIONS
Memory: 4GB RAM+64GB ROM
Expansion: Supports up to 256GB Micro SD card
Development API: iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits) Android Standard Interface
Development Tool: Eclipse/Android Studio
Rear Camera: 13MP AF with flash
WWAN: 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B5 / B8) CDMA 1X EVDO（BC0）
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)
5G: NR（N1/3/8/28/38/41/77/78/79）
Bluetooth:Bluetooth 5.1
GNSS: GPS/AGPS, GLONASS, BeiDou, Galileo
Touch Panel: Multi-touch,IC:GT911
Battery: Removable 4000mAh battery
Applicable Scene
KT-KP18
4G LTE / 5G
2.2 Gigabit Carrier Speed
5.7-inch
HD+，720*1440
5mp
5mp front, 13mp rear
4000mAh
Removable 4000mAh battery
Android™12.0
Android™12.0 System
KT-KP18(Medical)
5G
2.2 Gigabit Carrier Speed
5.7-inch
HD+，720*1440
5mp
5mp front, 13mp rear
4000mAh
Removable 4000mAh battery
Android™12.0
Android™12.0 System
KT-KP26
4G LTE / 5G
2.2 Gigabit Carrier Speed
6-inch
HD+，720*1520
5mp
5mp front, 13mp AF + 5MP FF rear
5000mAh
Removable 5000mAh battery
Android™11.0
Android™11.0 System
KT-KP36
4G LTE
1Gigabit Carrier Speed
4-inch
HD+，800*480
5mp
5mp front, 13mp rear
5000mAh
Removable 5000mAh battery
Android™11.0
Android™11.0 System
