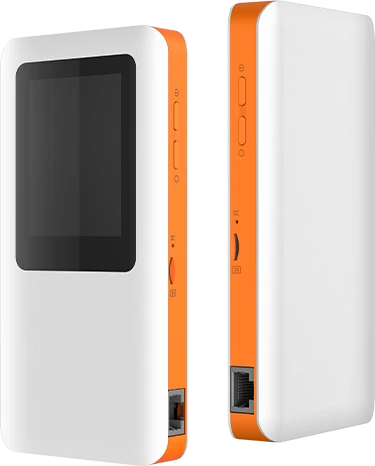

KT-M3H
Equipped with MTK900 chipset, Mature manufacturing process, passed the global network compatibility test, supports 3GPP Rel. 15 5G NR protocol, supports sub-6 GHz band; supports 5G,TDD, FDD bands, and realises full network connectivity.
- 5G MediaTek Dimensity 900
- Support CA/ENDC
- Professional management platform
- Modem compatible
- 36 hours of typical usage
- Up to 1201Mbps(802.11ax)
5G Mobile Hight Speed
WI-FI KT-M3H
Wired & Wireless connection as you will.
What makes Kingtop MIFI Different?
5G MediaTek
Dimensity 900
Support CA/ENDC
Professional management platform
Modem compatible
36 hours of typical
usage
Up to 1201Mbps(802.11ax)
MTK platform——a new era of flagship performance
Equipped with MTK900 chipset, Mature manufacturing process, passed the global network compatibility test, supports 3GPP Rel. 15 5G NR protocol, supports sub-6 GHz band; supports 5G,TDD, FDD bands, and realises full network connectivity.
Rocket Speed
3.5 Gbps theoretical download rate
NSA/SA
5G dual-mode network, 4G compatible
Sub-6G
Supports mainstream operator bands
ISP
Supports mainstream operator certification
CA&ENDC are available
Greatly improve the spectrum utilisation, support mainstream 2CC LTE+1CC NR ENDC combination,
LTE 2CA and some 2CA NR.Lower latency, higher capacity, more reliable network services, better performance.
Gigabit wired network port
Gigabit network port wired high-speed connection, more stable and reliable.
Free switching
5G/Wireline Network
Low latency
1Gpbs high-speed network port
USB3.0 directly connect to modem
Stable high-speed connection, maximising the use of cellular capacity and USB3.0 data transfer capability.
Lower power consumption, longer battery life
10,000 mAh large battery, support more than 36 hours of life in general use scenarios.
Rich scenarios to enjoy network

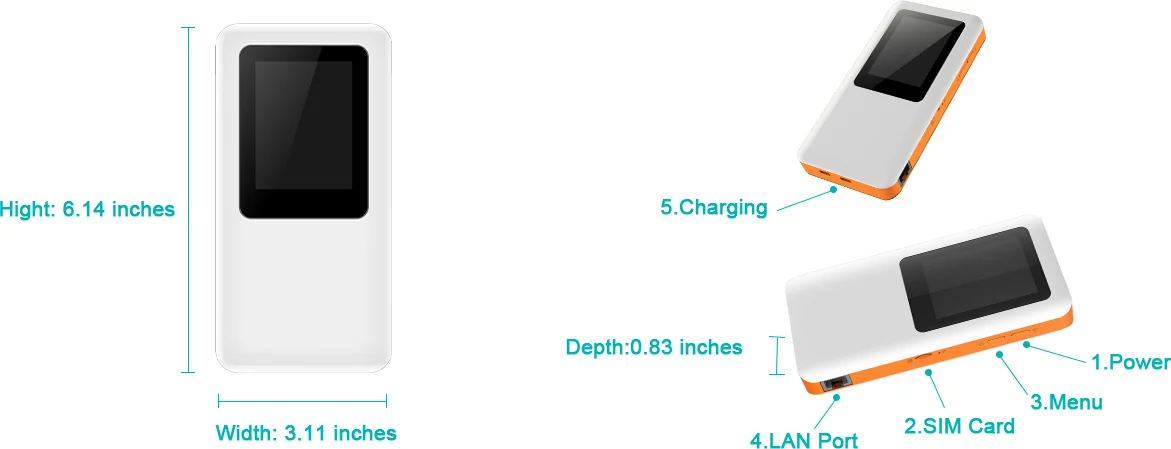

Product Technical Specifications
Memory: LPDDR4X 2GB RAM+EMMC 8GB ROM
WIFI : MT6635
BT : Bluetooth 5.1, optional
TP : Support
Protocal : 802.11 a/b/g/n/ac/ax
Throughput:
802.11a : Up to 54Mbps
802.11b : Up to 11Mbps
802.11g : Up to 54Mbps
802.11n : Up to 300Mbps
802.11ac : Up to 866Mbps
802.11ax : Up to 1201Mbps
USB :Either TYPE-C（USB3.0 )only or TYPE-C(USB 2.0)+1*GE LAN
Charge : TYPE-C 1*66W or 33W input，1*33W output
Scan QR code to log in the setting Web page
Scan QR code to log in the setting Web page, get connected, and customize your wifi hotspot’s settings in a snap.
And, the intuitive screen on the device itself is clear and easy to navigate so that you can quickly monitor your
Wi-Fi connections, identify your WiFi name/password, and more.
Which 5G device is right for you?
Stable network performance for all your devices
KT-M2H
135g
135g only
576hours
Standby time: 565hours
KT-M3H
155g
155g only
720hours
Standby time: 720hours
Interested in the KT-M3H?
5G Portable WiFi. Tell us about your project, volumes and customization needs. Our sales engineers reply within 24 hours with pricing, lead times and samples.
- OEM / ODM customization and low MOQ
- Sample testing before bulk orders
- 15+ years of 4G/5G device manufacturing
