Android 11
5G Mobile Hight Speed
WI-FI KT-M3H
Wired & Wireless connection as you will.
What makes Kingtop MIFI Different?
5G MediaTek
Dimensity 900
Support CA/ENDC
Professional management platform
Modem compatible
36 hours of typical
usage
Up to 1201Mbps(802.11ax)
MTK platform——a new era of flagship performance
Equipped with MTK900 chipset, Mature manufacturing process, passed the global network compatibility test, supports 3GPP Rel. 15 5G NR protocol, supports sub-6 GHz band; supports 5G,TDD, FDD bands, and realises full network connectivity.
Rocket Speed
3.5 Gbps theoretical download rate
NSA/SA
5G dual-mode network, 4G compatible
Sub-6G
Supports mainstream operator bands
ISP
Supports mainstream operator certification
CA&ENDC are available
Greatly improve the spectrum utilisation, support mainstream 2CC LTE+1CC NR ENDC combination,
LTE 2CA and some 2CA NR.Lower latency, higher capacity, more reliable network services, better performance.
Gigabit wired network port
Gigabit network port wired high-speed connection, more stable and reliable.
Free switching
5G/Wireline Network
Low latency
1Gpbs high-speed network port
USB3.0 directly connect to modem
Stable high-speed connection, maximising the use of cellular capacity and USB3.0 data transfer capability.
Lower power consumption, longer battery life
4400 mAh large battery, support more than 12 hours of life in general use scenarios.
Rich scenarios to enjoy network
Product Technical Specifications
Operating System
Platform
Chipset : MTK900，6nm 2*A78（2.4GHz）+6*A55（2.0GHz），GPU：Mali OTR MC4
Memory: LPDDR4X 2GB RAM+EMMC 8GB ROM
WIFI : MT6635
BT : Bluetooth 5.1, optional
Memory: LPDDR4X 2GB RAM+EMMC 8GB ROM
WIFI : MT6635
BT : Bluetooth 5.1, optional
LCM
LCD: 2.8''TFT MIPI（LCD or LED）
TP : Support
TP : Support
LED
Red, Green, Blue
WIFI
Bands : 2.4G, 5.8G
Protocal : 802.11 a/b/g/n/ac/ax
Throughput:
802.11a : Up to 54Mbps
802.11b : Up to 11Mbps
802.11g : Up to 54Mbps
802.11n : Up to 300Mbps
802.11ac : Up to 866Mbps
802.11ax : Up to 1201Mbps
Protocal : 802.11 a/b/g/n/ac/ax
Throughput:
802.11a : Up to 54Mbps
802.11b : Up to 11Mbps
802.11g : Up to 54Mbps
802.11n : Up to 300Mbps
802.11ac : Up to 866Mbps
802.11ax : Up to 1201Mbps
Interface
SIM card : NANO SIM card, eSIM optional
USB :Either TYPE-C（USB3.0 )only or TYPE-C(USB 2.0)+1*GE LAN
Charge : TYPE-C 1*66W or 33W input，1*33W output
USB :Either TYPE-C（USB3.0 )only or TYPE-C(USB 2.0)+1*GE LAN
Charge : TYPE-C 1*66W or 33W input，1*33W output
Polymer Battery
10000 mAh， could be customized

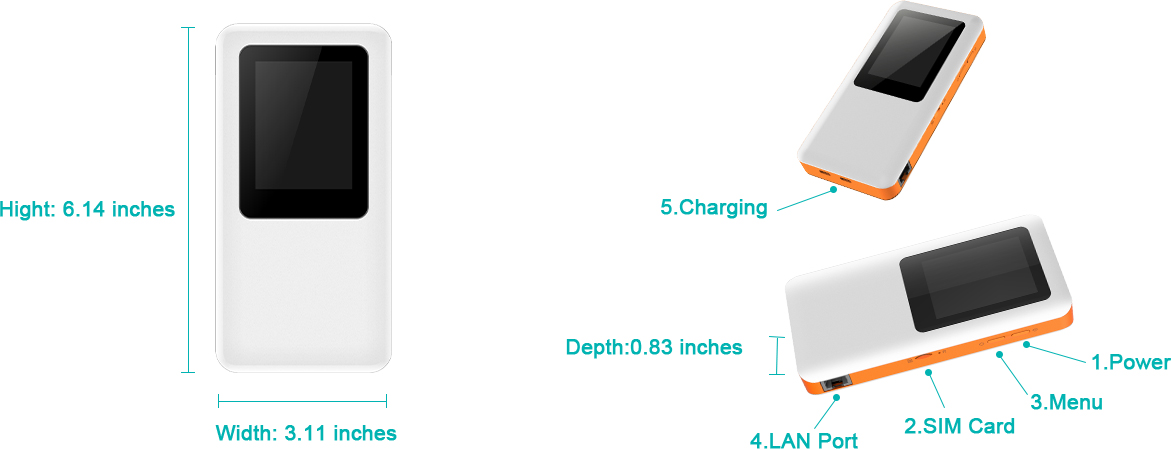

Dimension
156*79*21mm (could be customized.)
Scan QR code to log in the setting Web page
Scan QR code to log in the setting Web page, get connected, and customize your wifi hotspot’s settings in a snap.
And, the intuitive screen on the device itself is clear and easy to navigate so that you can quickly monitor your
Wi-Fi connections, identify your WiFi name/password, and more.
